Fluid flow, thermal engineering, experiments

qualification of helium flow cooling concept.

For a high-tech project, a conduction cooling concept based on helium flow is being consideration. The suitability and performance of this method need to be verified using numerical analysis and experiential verification to qualify the concept. The experimental results and the numerical calculations have demonstrated that helium flow cooling is a suitable method for cooling a workpiece in the high-tech project.

verifying cooling method

cooling with helium flow.

A heat flux is applied to a single channel using joule heating (resistive heating by the use of a high electric current over the channel which is used as the conductor).

A high flowrate helium flow is driven by a high pressure difference, ∆P>50 bar, through the channel.

The flow temperature is measured on both sides of the test channel to determine the heat transfer coefficient. A variety of flowrates and heat fluxes are tested. The results of the experimental are used to refine the parameters used in the CFD model until a good agreement was found between the two approaches.

test setup and CFD results of helium flow cooling concept

VIEW ELABORATED PDF
portret picture multiphysics engineer

Joost Mulder

+31 (0)88 115 20 00
contact us

explore more cases.

coupled electromagnetic and heat analysis of a coil using comsol multiphysicscoupled electromagnetic and heat analysis of a coil using comsol multiphysics

design and performance validation of a heating system.

Read more

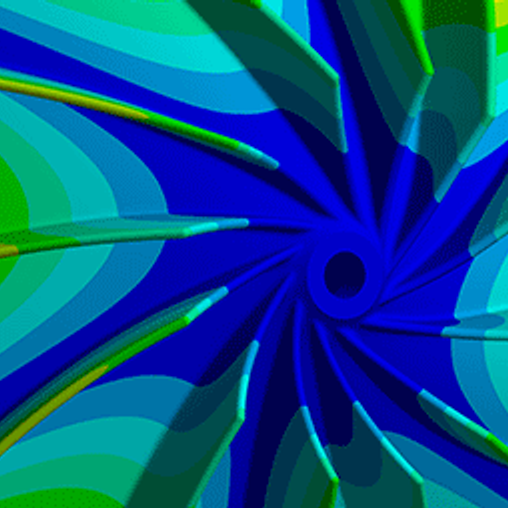

FEM analysis of the stress in a radial turbine blowerFEM analysis of the stress in a radial turbine blower
