The guidewire of, initially, several centimeters long and a diameter of 0.33 mm had limited shaping capabilities while the tip rotates and bends simultaneously. Moreover, there was insuffcient insight on specific behavior of the concept. Demcon multiphysics successfully supported with simulations and analyses to explain the unknown features of the design. This was the start of a fruitful collaboration between Demcon and MMH. We set our common goal to develop a steerable guidewire of more than 1.5 m length and capable of shaping its distal end by bending and rotating seperately with a suitable controller.
medical product development.
Diff erent concepts were developed to realize a tip that only bends in-plane or purely revolves around its own axis. Other requirements like safety, costs, ergonomics and biocompatibility were also included in these designs.
The most promising concepts were virtually tested with the use of FEM simulations. Evaluation criteria were: bending shape, rotation behavior, tip load, support sti ness, force actuation and maximum stresses. Production followed and the designs were experimentally validated. The validation showed promising results, validating our virtual prototyping approach, even for delicate and high accuracy structures such as guidewires.
A similar approach was used for developing the controller, increasing guidewire length and combining the bending and rotation tip in a fully integrated design.
result.

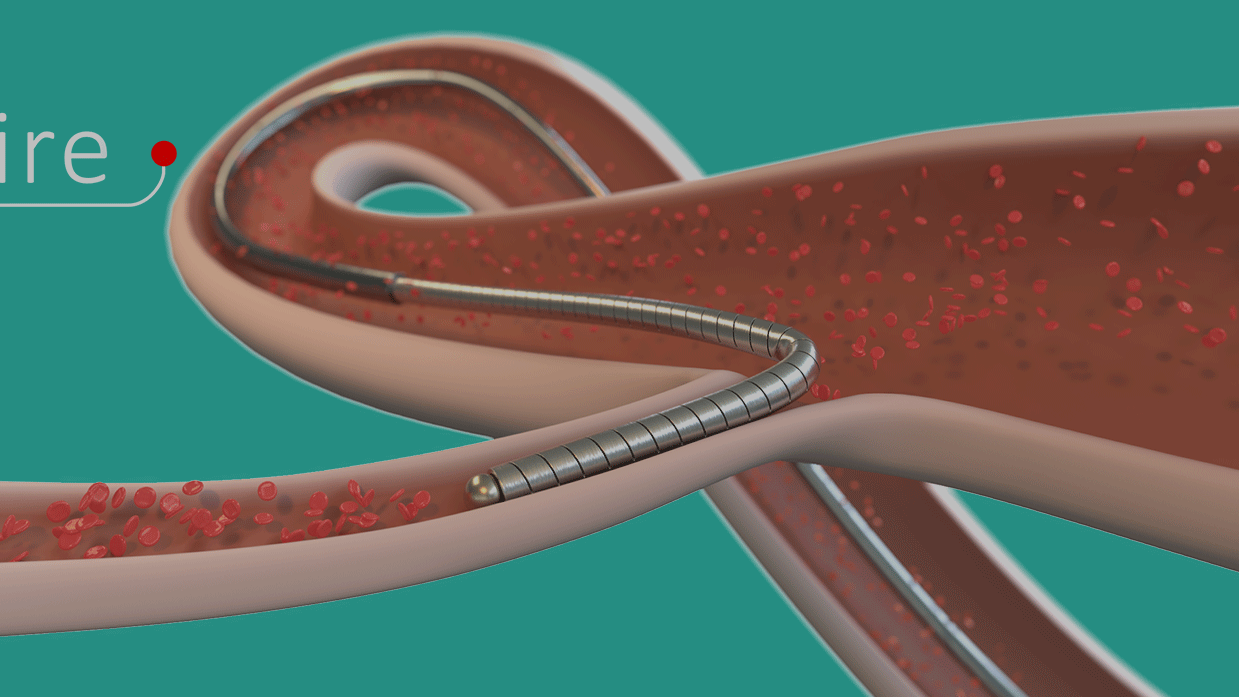

A 1.5 m long variant of the steerable guidewire including a controller was realized and patented. It is platform ready to engineer it further towards a specific medical application, like neurovascular surgery, cardiology, gastroenterology or radiology.
Curious about the patent? Have a look under: EP3344323B1, EP3578221A2, US 10,441,746, US 11,241,557, US 2022/0143362, Pending N2032588
“we have created a major medical innovation.”
It has been very special to develop a major innovation like the Redwire for a medical instrument that is of great use in potentially life-saving procedures. We talked to physicians about their needs and the new applications and added value they expected from a guidewire. Our new design, which was developed in a collaboration with Peter Besselink from Memory Metal Holland B.V., extends their range in operation. They can, for example, take an extra corner to reach the intended target in the circulatory system exactly or to guide the catheter of choice that cannot be handled by a conventional wire.
