custom silencer for flywheel module.

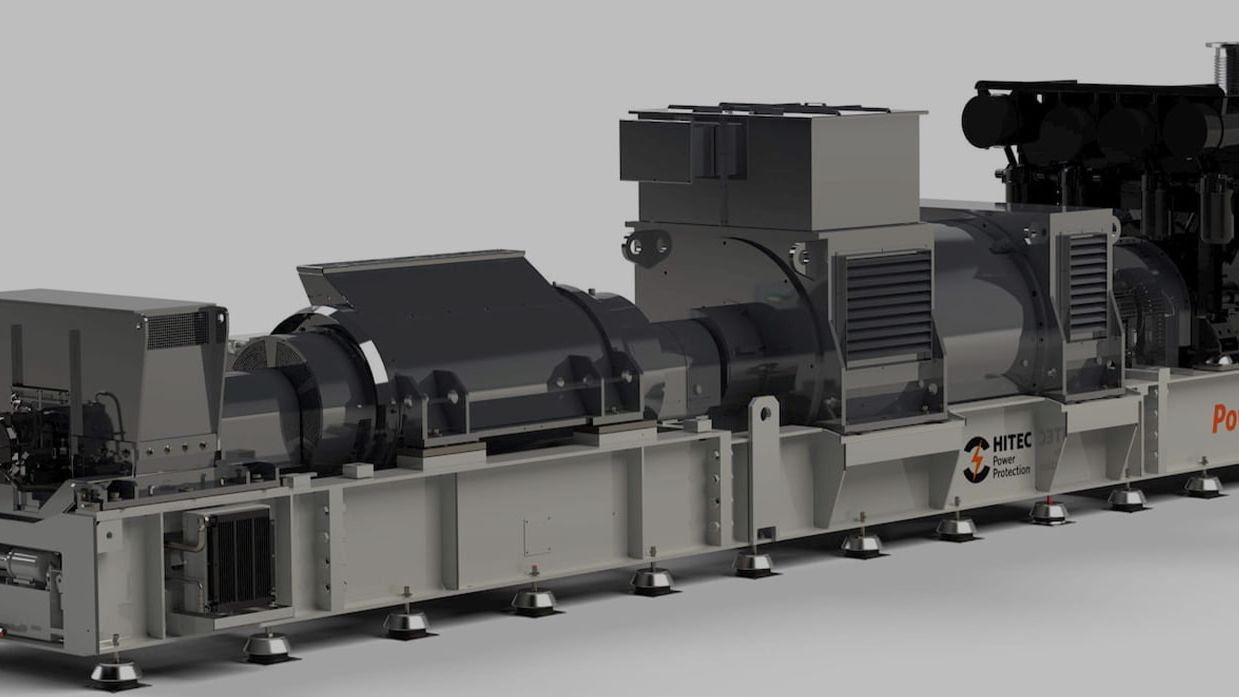

A key component in uninterruptible power supply systems is a fly wheel. The kinetic energy of this flywheel is used to abridge the short time period between the power failure and the starting of a diesel engine. A specific custom engineered flywheel model of HITEC produced an unexpected high tonal noise which led to hindrance for the end user. Demcon Multiphysics was asked to solve this issue and after review it was concluded that the best solution would be a low frequency silencer. Additional acoustic measurements resulted in a design which was verified by using an acoustic Finite Element Model. Furthermore, we recognized the effect of the flywheel on the flow resistance and thus the risk of heat production. A Computational Fluid Dynamics study on the silencer mitigated this. Next the mechanical engineering, procurement and production competences of Demcon delivered the custom-made silencer to HITEC, ready for verification tests (FAT/SAT). These tests showed that the custom engineered silencer was able to mitigate the tonal noise that was a hindrance to HITEC’s end user.
Reducing noise problems
our approach.
Experts from the area of acoustics and flow visited the engineering and production site of HITEC in the Netherlands to assess the issue and discuss potential solutions with the responsible product owner from HITEC. The available 1/3 octave band sound power level measurement data was reviewed and a running unit was investigated in the workshop. After extensive review, it was decided that the most cost effective and lowest technical risk solution for this case was to design a custom low frequency silencer specifically designed to reduce the tonal noise.
The first step in the design of the custom silencer was to collect a more detailed acoustic signature. Therefore, an independent measurement was conducted. Using an advanced sound intensity probe, the required narrow band source power spectra was obtained. Based on the acoustic signature, one of the acoustic specialists designed the silencer. The silencer’s working principle is based on cavity resonators separated by an acoustic liner based on micro-perforated panels. The Sullivan-Crocker model for cavity resonators was used to find the optimal configuration within the spatial constraints. The final design was verified using an acoustic Finite Element Method simulation.

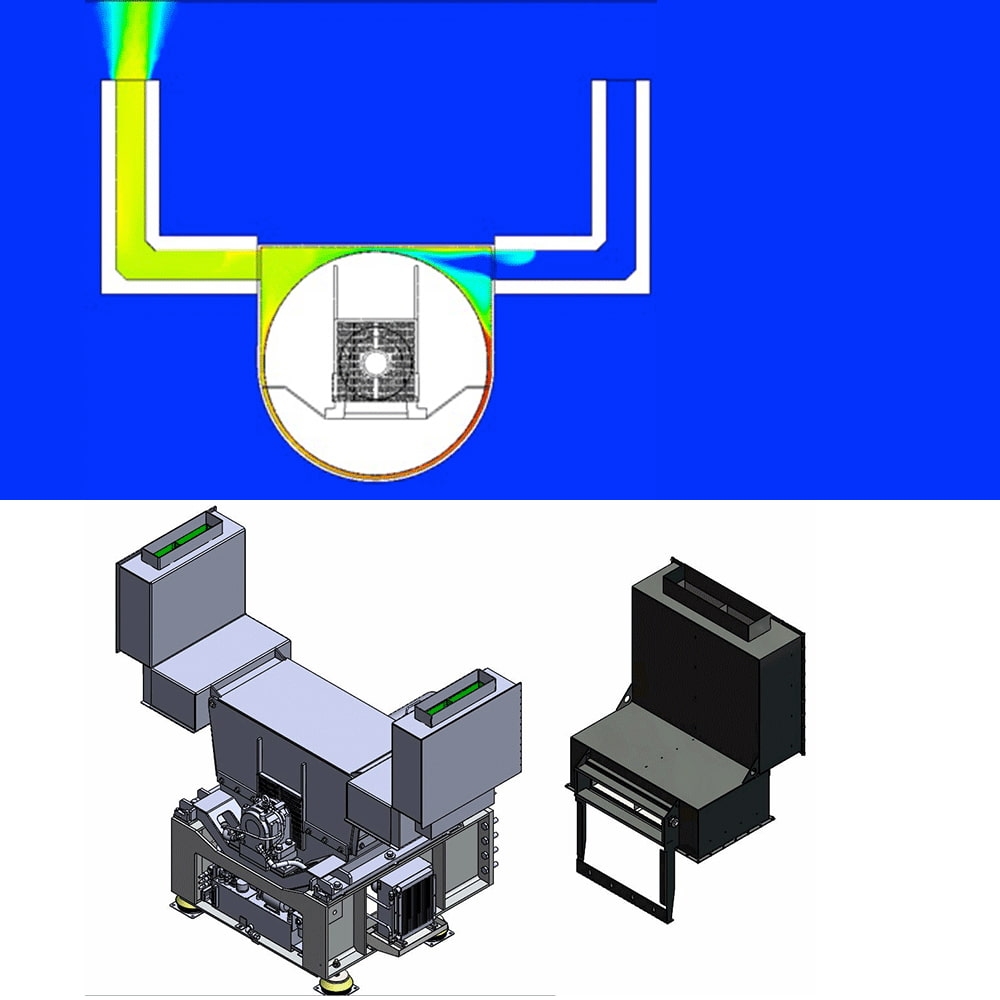

The team also recognized the importance of the silencer on flow resistance by mounting the silencers on the inlet and outlet of the flywheel module. This was important as the flywheel is continuously running in air at atmospheric pressure, which generates windage losses and causes the release/production of heat. To ensure that the flywheel does not overheat and that good ventilation is maintained, a CFD analysis of the air flow in the flywheel system was made. Moreover, this allowed verification of the pressure levels at the bearings to ensure that no oil is extracted from the bearing due to a local under pressure. The CFD analysis confirmed that the temperature of the flywheel would still be within the specifications after installation of the custom silencer. The better-guided flow actually improved the cooling capacity of the system.
The next step in the development was to complete the mechanical design and to prepare technical procurement documentation. A number of specific mechanical requirements had to be implemented during this step as well. The silencers should be easy to mount and drilling additional holes in the flywheel housing was to be avoided. Moreover, an exchangeable filter was installed to protect the acoustic materials from dirt and dust.

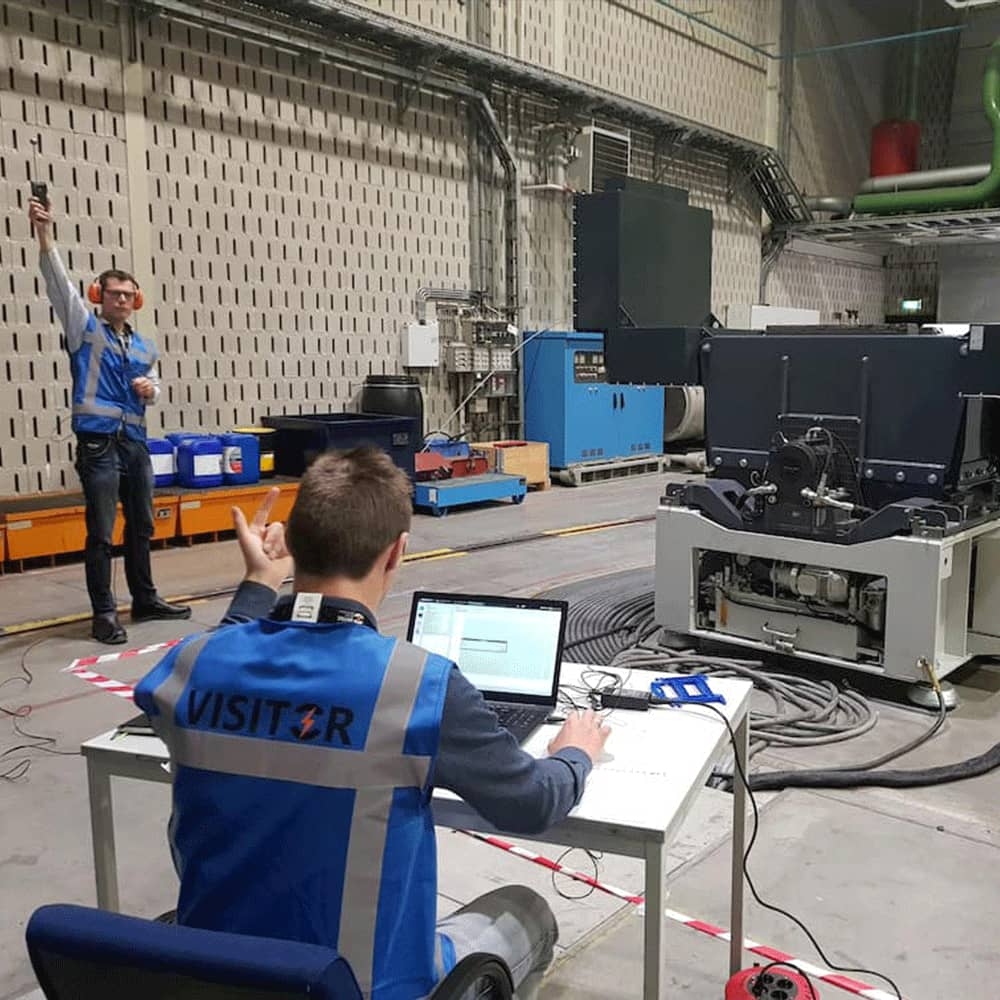

Finally, the execution of a verification measurement (FAT/SAT) was performed to demonstrate the effectiveness of the silencer. This test was conducted at the test facility of HITEC.
